Tech Products

Payment Terminal
Flexi – Designed for daily use
With a product used by more than 2 million Danish credit cards, 737 million transactions and an annual turnover of 36.2 billion euros, man machine interface, functionality, ergonomics are crucial factors for the product’s success.
The payment terminal FLEXI from SAGEM provides the highest security, is user-friendly and fits any store interior and environment.
Ascom
Switzerland – Denmark
Project
Payment Terminal
Sector
Electronics
Business to Business
Disciplines
Man Machine Interface
Industrial Design
Color, Material and Finish
Year
2001 – 2002

1:1 Foam Models

CAD 3D Models

0-Series

Matching Products
Solo Flexi

Designed for daily use
The secure credit card terminal.
The terminal that can demonstrably handle payments with both chip and magnetic stripe.
Get a fast, shock-resistant terminal that takes into account high activity and shortens the queue where customers have to pay.

Models
1: 1 Cardboard, foam and CAD models, and 3D Print.
In this project, Sagem’s investment was once again secured.
Modeling and fast prototyping was one last step before we went in
0-series and production.

Two Parts
One to the customer and one to the clerk.
Solo Flexi is designed for everyday use.
The design is so simple and logical that both you and the customer can operate the terminal without explanation.
Solo Flexi is produced in robust and durable PVC, so it also lasts well, even after several years of intensive use.

Payment Terminal
UPT 7000
For companies looking to implement unsupervised payment solutions for self-service customers, Cryptera offers UPT 7000, a brand new payment terminal, designed for ultimate security and efficient payment processing.
The UPT 7000 is the ideal piece of hardware for manufacturers looking to deliver fast and easy payment applications to their customers while complying with the highest internationally recognized security standards, all without human intervention in the payment process.
Cryptera
France – Denmark
Project
Payment Terminal
Sector
Electronics
Business to Business
Disciplines
Man Machine Interface
Industrial Design
Year
2002 – 2010

Quick and easy operation
A bright screen, ergonomic design and integrated card reader significantly enhance the user experience. The UPT 7000 is robustly built with a gray polymer housing and LCD backlit display, and excels in outdoor locations as it is capable of operating in temperatures as high as 65 ° C and as low as -68 ° C.
With a growing list of applications, the UPT 7000 has success on ticket kiosks, payment services, gaming kiosks, parking kiosks, car washes and more.
Ultimate security
For added security, the UPT 7000 is powered by the Crypteras Generic Payment Application, which provides an EMV-compatible integration layer of security between the display, PIN and card reader, and the payment processing software on the terminal. This means that both the provider and the user can be sure that their unsupervised payment is secure.





Payment Terminal
EFT 930
Design of security screen for portable payment device.
The EFT930 series combines an endless choice of fast communication and connectivity options.
With 32-bit ARM processing and advanced security, you solve any mobile payment scenario – including contactless – and still experience ultra-fast, and cost-effective transactions.
Sagem
France – Denmark
Project
Security Screen
Sector
Electronics
Business to Business
Disciplines
Man Machine Interface
Industrial Design
Year
2006


Payment Unit
Payment unit for ticket machine
Copenhagen Metro
Sagem Danmark’s payment solutions are designed to suit various unprotected environments that require reliable and secure card payment.
Solutions have been chosen with units from the Sagem Denmark product range.
Flexibility in physical integration as well as software integration is high, which makes the solutions ideal for many applications such as:
• Self-service petrol stations
• Ticket machines
• Parking facilities
• Slot machines
• Kiosk solutions
Easy, flexible integration
To facilitate physical integration and allow a variation of the user interface, the PIN code and the card reader are separate devices.
This ensures high flexibility in mechanical integration in new and existing equipment.
Withstands harsh environments
The Sagem Denmark product range consists of PIN code and secure card reader products designed to work in different climates and resist vandalism. The products are suitable for both indoor and outdoor use.
Sagem
France – Denmark
Project
Security Screen
Sector
Electronics
Business to Business
Disciplines
Man Machine Interface
Industrial Design
Year
2002


SBB
Schweizerische Bundesbahnen
This ticket machine is designed for easy identification and location at the train station, and is intuitive and efficient to use, even for wheelchair users.
Ascom Autelca
Switzerland
Project
Ticket Vending Machine
Sector
Electronics
Business to Business
Disciplines
Man Machine Interface
Industrial Design
Year
1993

Hong Kong Metro
Metro Tickets
Hong Kong Metro transports hundreds of thousands of people daily.
And they asked Ascom Autelca to design a new ticket machine with the following features;
– Destination is selected on the touch screen
– Fast payment
– Receive ticket
All within an average of just 8 seconds!
To emphasize the features, the front is divided into 3 sections.
On the left side, return money and ticket come out, in the middle of payment with coins and cards, and to the right payment with banknotes.
The touch screen is distributed over the left side and the middle of the machine.
Ascom Autelca
Switzerland
Project
Ticket Vending Machine
Sector
Electronics
Business to Business
Disciplines
Man Machine Interface
Industrial Design
Year
1994

Barcrawler
Payment Terminal
English pubs often experience vandalism, particularly on weekends, leading to costly repairs and replacements of machines.
This secure payment terminal is designed to be more resilient to physical damage, helping to reduce the financial burden of vandalism.
Sagem
Denmark
Project
Payment Terminal
Sector
Electronics
Business to Business
Disciplines
Man Machine Interface
Industrial Design
Year
2004 – 2005


Control Module
Mounted inside Ticket Machines
Invisible to the end user, the design is however important when a sale will separate themselves from the competition.
INT 3200 is a universal control module for:
• Unsupervised payment solutions
• Gateway for communication in vending machine
• Multifunction communication
Product features:
• High performance ARM9 processor
• Easy integration
• Versatile
• Multiple interfaces for communication
• POS terminal software compatible
INT3200 is a universal controller module suitable for hosting payment applications as well as other applications.
INT3200 is ideal for building standalone payment solutions based on Sagem PIN pads and secure card readers.
The module is contained in a plastic box that can be easily mounted in the measuring equipment.
The module contains a powerful ARM 9-based CPU, memory, network connection (ethernet), three serial connections, USB host and slave connections.
The module will be available in a special sales version that includes the MDB interface.
The module fits the slot in an EVA size coin-mec.
Cryptera
Denmark
Project
Control Module
Sector
Electronics
Business to Business
Disciplines
Man Machine Interface
Industrial Design
Year
2005



UPT
Unattended Payment Terminal
Welcome to our Payment Terminal!
Please insert your payment card and follow the on-screen instructions to complete your transaction.
Thank you for using our service.
It’s that easy.
Sagem
Denmark
Project
Payment Terminal
Sector
Electronics
Business to Business
Disciplines
Man Machine Interface
Concept
Industrial Design
Year
2010



DP1000
DVD Player
Second generation of DiVX DVD players, DP1000 series.
75% smaller than first generation.
100% just as entertaining.
KiSS Technology
Denmark
Project
DVD Player
Sector
Consumer Electronics
Business to Costumer
Disciplines
Strategy
Portfolio
Concept
Industrial Design
Color, Material and Finish
Year
2003



DP500
Kiss your Black Box
In 2000, Onø Design was challenged to develop a new design line for KiSS Technology.
We started with the DVD series 500. The new design strives to be simple and timeless.
KiSS Technology was among the first to take advantage of the DiVX format.
DiVX reduces file sizes, making it a perfect format for broadcast and streaming movies.
• Stop and play live TV whenever you want.
• Record up to 300 hours of TV program directly on the player’s hard disk.
• Get direct access to all your favorite audio, video and image files from your PC – and watch them on your TV, plasma or widescreen.
KiSS Technology
Denmark
Project
DVD Player
Sector
Consumer Electronics
Business to Costumer
Disciplines
Strategy
Portfolio
Concept
Industrial Design
Color, Material and Finish
Year
2003
After 4 years of collaboration, the marketing manager stated:
“Some of your first sketches four years ago are now state-of-art Design.
If we had just followed your advice on design, we would now have a much stronger Brand ”.
In 2004, KiSS Technology was sold to Linksys, which is owned by the American company Cisco.


DP600
KiSS Technology introduces first DVD DP-600 to new video standard
Danish KiSS Technology shows one of the first DVD players with the new decoder chip from Sigma Designs at the Cebit trade fair in Hanover 2004.
The DVD supports Windows Media Video 9, which has compression capability.
WMV9 should be four times better than MPEG-2 and twice as good as MPEG-4.
The DP-600 player is equipped with a WLAN 802.11g connection for wireless access to the Internet or the PC.
The DP-608 is also equipped with an 80 GB hard drive to store music, movies, photos and other content.
Kiss Technology is the first vendor to use Sigma’s new EM8620L digital media processor in regular consumer products as DVD players.
KiSS Technology
Denmark
Project
DVD Player
Sector
Consumer Electronics
Business to Costumer
Disciplines
Strategy
Portfolio
Concept
Industrial Design
Color, Material and Finish
Year
2004

TFT – Monitor
KiSS is an acronym for – Keep It Simple Silly
Exactly what this TFT screen does.
Integrated DiVX and DVD.
KiSS Technology
Denmark
Project
Monitor
Sector
Consumer Electronics
Business to Costumer
Disciplines
Strategy
Portfolio
Concept
Industrial Design
Color, Material and Finish
Year
2003

Plasma TV
Sophisticated Scandinavian design and cutting-edge technology in the same solution
42 ”HD plasma TVs that fit perfectly into the digital home of tomorrow with WLAN connections and support for several digital formats, including Windows Media HD.
In addition to being equipped with wireless or wireless Ethernet connections and digital TV tuners, the new TVs from KiSS Technology support several digital formats such as Microsoft Windows Media in both standard definition (SD) and HD (High Definition), DivX SD / HD and Nero Digital SD / HD.
With a wireless connection to your PC, Server or Entertainment PC and KiSS PC-Link software, the TV can receive streaming video, audio or be used for image viewing stored on a PC. In addition, they connect to the Internet for Video on Demand providers, which receive 10,000 Internet radio stations, weather forecasts, online games and other online services. The built-in DVD player, TV tuner, surround amplifier and high-quality speakers make this TV the perfect center of the digital home.
KiSS Technology
Denmark
Project
Plasma TV
Sector
Consumer Electronics
Business to Costumer
Disciplines
Strategy
Portfolio
Concept
Industrial Design
Color, Material and Finish
Year
2000 – 2004


Samba
Cordless Telephone
Samba stands out with its simple and cost-effective design.
It consists of only five parts assembled with snap locks.
Apart from the batteries, no heavy metals are used.
The design is based on the interplay between convex and concave surfaces, giving a compact and sleek look.
This is done down to the last detail; For example, the keys on the handset are recessed into a concave surface to prevent them from being accidentally activated.
The handset fits well with the base, which enhances the compact appearance of the device.
Platform
Samba is the third generation of cordless phone design.
Circuits and other components were also used for Swiss Telecom, Sinus 51 and Beocom 5000.
Ascom
Switzerland
Project
Telephone
Sector
Consumer Electronics
Business to Costumer
Disciplines
Industrial Design
Color, Material and Finish
Year
1994
Design Award
IF 1996

Sinus 51

Beocom 5000

Beocom 5000
Cordless Telephone
B&O’s first cordless phone with a number of attractive features that make it a convenient and flexible phone in everyday life.
No matter where you are in the house, there is easy access to both incoming and outgoing calls.
The handset has an excellent weight distribution and ergonomics, which makes long calls more comfortable.
Platform
Beocom 5000 cordless phone is exclusively designed for B&O.
Developed on the Ascom platform by circuits and other components used for Sinus 51, Samba and PTT.
Bang & Olufsen
Switzerland, Denmark
Project
Telephone
Sector
Consumer Electronics
Business to Costumer
Disciplines
Concept
Industrial Design
Color, Material and Finish
Year
1994
Design Award
IF 1996

Ascom Samba

Sinus 51

Sinus 51
Cordless Telephone
Sinus 51 shows that a cordless phone does not have to cost a penny.
This new cordless phone with state-of-the-art technology and attractive design.
For people who appreciate a large radius of action.
Platform
The Sinus 51 cordless phone was designed for two customers, Swiss Telecom and Telekom Deutschland.
Circuits and components are based on the same platform as “Samba” and “Beocom 5000”.
Telekom
Germany, Denmark
Project
Telephone
Sector
Consumer Electronics
Business to Costumer
Disciplines
Concept
Industrial Design
Color, Material and Finish
Year
1994
Design Award
IF 1996

Ascom Samba

Beocom 5000

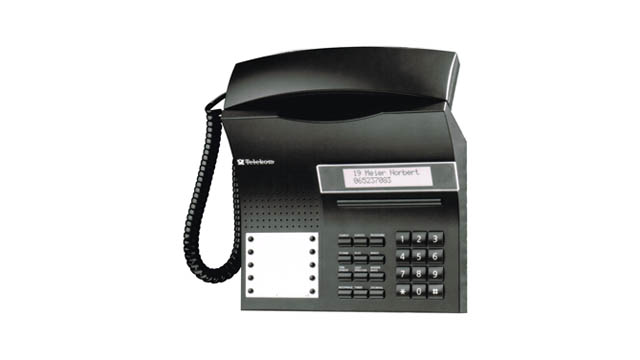

Glissando
Telephone for Deutsche Telekom
Innovative idea; one and the same design for two different applications.
The handset is positioned at a 30° angle, no additional parts are required for wall mounting.
And there is no ergonomic compromise when handling the handset.
The slim volume is reduced achieved with an elegant curve, giving a distinctive design.
Ascom
Switzerland
Project
Telephone
Sector
Consumer Electronics
Business to Costumer
Disciplines
Concept
Industrial Design
Color, Material and Finish
Year
1994


Euronova 200
Telephone
The Euronova 200 telephone is the perfect combination of style and function.
Its curved and elegant design will make a bold statement in any room, while its sleek lines and modern, simple look will add a touch of sophistication.
With this telephone, you can enjoy the best of both worlds – a stylish and functional piece of technology.
Ascom
Switzerland
Project
Telephone
Sector
Consumer Electronics
Business to Costumer
Disciplines
Concept
Industrial Design
Color, Material and Finish
Year
1995


Euronova 300
Telephone
The Euronova 300 telephone is an ideal blend of form and function.
Its curved and stylish design will make a bold statement in any room, while its sleek lines and modern, minimalistic look will add a touch of sophistication.
With this telephone, you can have the best of both worlds – a fashionable and practical piece of technology.
Ascom
Switzerland
Project
Telephone
Sector
Consumer Electronics
Business to Costumer
Disciplines
Concept
Industrial Design
Color, Material and Finish
Year
1995

Prisma
Answering Machine
Prisma is the perfect solution for managing incoming calls. Its sleek, modern design and large LCD display make it easy to navigate and customize your preferences.
It also features a built-in voice mail system that allows you to record and store messages.
Additionally, the answering machine is equipped with a variety of features, such as call screening, call forwarding, and remote access, making it incredibly convenient and efficient.
Its intuitive design ensures that you can quickly and easily access all of its features, making it a great choice for busy households.
Ascom
Switzerland
Project
Answering Machine
Sector
Consumer Electronics
Business to Costumer
Disciplines
Industrial Design
Color, Material and Finish
Year
1993
Design Award
IF 1994

Remote
Remote Control for Luxury Hotels
Stylish and well-balanced design is essential when designing 5-star hotels around the world.
The design is as little design as possible, honest and discreet, easy to understand, and its aesthetics last a long time.
This remote control is designed for LOCATEL, a French company specializing in IT solutions.
The remote control lets the 5-star hotel focus on their key competence in service, and lets LOCATEL take care of guest-facing experiences.
Locatel
France – Denmark
Project
Remote Control
Sector
Consumer Electronics
Business to Business
Disciplines
Industrial Design
Color, Material and Finish
Year
2012








“I had the pleasure of working with Svend on a project of remote control for 2M Locatel.
Svend conducted an impressive study of ergonomics, other designs and users.
He has designed what I believe is one of the most elegant RCs ever to see the light of day, one I would be very happy to have in my own home and something that could potentially increase sales to my company alone.
I would recommend Svend at any time and will definitely work with him again given the opportunity”
René Sørensen

Remote
Tele Switches for Remote Control
Abson is a retailer that launched its own Brand and Products in 2004, including Tele Switches for remote control of electrical appliances.
Abson
Denmark
Project
Tele Switch
Sector
Consumer Electronics
Business to Business
Disciplines
Concept
Industrial Design
Color, Material and Finish
Year
2004




Barryvox
Electronic Life Saving Device
Barryvox – for mountaineering and diving.
Immediate help is what really matters.
This has been proven by test carried out by the Swiss Federal Institute for Snow and Avalanche Research, Weissfluhjoch, Davos.
Human life is dependent on simple and effective user-interface.
If the victims of an avalanche can be found immediately afterwards, the chances of survival are 80%.

Ascom Radiocom
Switzerland
Project
Rescue Device
Sector
Consumer Electronics
Business to Consumer
Disciplines
Industrial Design
Man Machine Interface
Color, Material and Finish
Year
2004
Design Award
IF 1994

Camera Concept
APS Camera
Design of this APS Camera focus on creating a lightweight, compact camera that is easy to use.
APS stands for Advanced Photo System, a analog film format that was first produced in 1996 and discontinued in 2011.
The camera would have a wide range of features, including manual and automatic settings, a variety of shooting modes, and a LCD screen for easy viewing.
Additionally, the camera was designed with ergonomics in mind, with a comfortable grip and intuitive controls.
Finally, the camera would be durable and reliable, with a robust construction and energy-efficient, with a long battery life and low power consumption.
Konica
Denmark
Project
APS Camera
Sector
Consumer Electronics
Business to Consumer
Disciplines
Concept
Industrial Design
Color, Material and Finish
Year
1997

TeleSwitch
Power Protection
Saving energy for a better environment is crucial.
TeleSwitch enables a PC / Modem combination to receive faxes, data and voice, without the need for it to be on continuously.
TeleSwitch protects against heat and power outages in the computer.
EMI and RFI filtering keeps the stream smooth and free of interference.
Telephone-controlled control of lights, music and safety equipment is an additional option.

Ascom
Switzerland
Project
TeleSwitch
Sector
Consumer Electronics
Business to Costumer
Disciplines
Industrial Design
Color, Material and Finish
Year
1995
